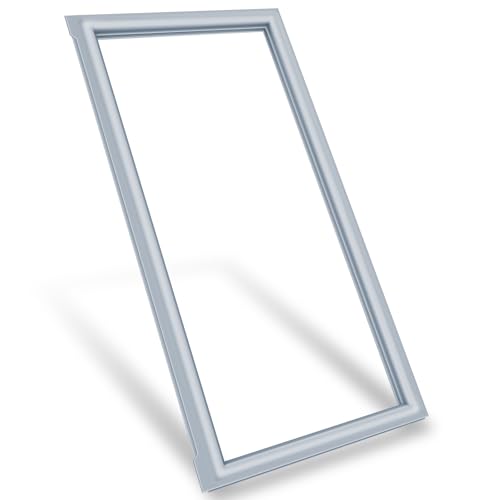

Upgraded W10830283 Refrigerator Door Gasket for Whirlpool Refrigerator Left Door, 39.65″*13.78″ Refrigerator Gasket Seal Replacement for Kitchen-Aid & Ken-more Replace Door Seal W10218680, W10443269

Description

[Specification Size] Luckman W10830283 refrigerator seal approximate size is: 39.65″ x13.78″, please measure your old gasket size carefully before ordering. [NOTE] This W10830283 gasket is used for the left side door. Fits various Whirlpool appliance models; please confirm this part is correct for your model before ordering. Many door gaskets look the same but are not the same size, please order based on size rather its looks. NOTE: Smooth folds and creases in gasket W10830283 by soaking it in warm water or warming it with a hair dryer on low heat.
[Perfect Whirlpool Door Gasket Replacement Part] Durability upgraded Whirlpool W10830283 refrigerator gasket replacement can perfect solve following problems: ➊Door gasket broken torn, worn ➋Moldy & dirty door gasket ➌Leaking / poor seal, temperature not staying cold. ➍Condensation builds up/ frost / ice build up inside. This is a brand-new, genuine Whirlpool refrigerator door gasket replacement (Model W10830283), designed to restore the seal on your refrigerator door and prevent warm air from entering.
[Replaces Part Numbers] This W10830283 fridge left door gasket replaces several part numbers, including W10218680, W10443269, 4458821, AP6038601, PS11768660, EAP11768660. Check the full list in the product description to ensure compatibility with your appliance.
[Compatible with Brand Models] This W10830283 refrigerator door gasket is compatible with a wide range of Ken-more,Kitchen-Aid, May-tag, Whir-lpool refrigerator models. Some compatible models include Whirlpool WRF532SMHZ00 WRF532SNHZ01 WRFA32SMHZ04 WRFF5333PZ02 GX2FHDXVQ03 GX2FHDXVY09 GX2SHBXVY05 WRF532SNBB01 and more, Kenmore 10672003016 59679212013 59679223011 59679412411 , and Kit-chen-Aid KRFF302ESS06 KBFS22EWBL1 KBFS22EWMS9 KRFF302EWH00 .Check the full list in the product description to ensure compatibility with your appliance.
[Durable and Flexible Material] W10830283 refrigerator door seal made from high-quality, flexible materials, this black door gasket ensures a tight seal, improving energy efficiency and maintaining optimal cooling performance in your refrigerator.
[Installation Steps] Step 1. The first thing you need to do is unfold it and lay it flat with the surface that will attach to the flat surface of the door down flat on the floor for a day or two, so you can get any kinks or folds out of it before you install it. Step 2. If any part of it isn’t laying flat on the floor, take some painters tape or packing tape and tape it down flat. Step 3. If that still doesn’t work, use a hair dryer and massage the kinks out with your fingers or get some hot water and dip the affected portion in the water and massage the kinks out. Step 4. Then, grab your old gasket at the top and begin to pull it out working your way around the door.
[Installation Steps] Step 5. To install the new seal, find the short edge that looks like there is a tab sticking out and place that in the top corner of the door where you are replacing it. Step 6. The flat part of the seal should be on the outside because this is where it will seal to the refrigerator opening surface. Step 7. Starting at the top outer conner work your way down, firmly pushing the seal into the grooves of the refrigerator door. Step 8. Once you reach the bottom, go back to the top edge and push the seal in across the top horizontally, then work your way down the other long edge on the inside and finally, push it in across the bottom.
