PWAY HDMI Extender 500ft Over Single Cat5e/6, One to Multiple Monitors by Gigabit Ethernet Switch, Full HD 1080P@60Hz Video Extended

Description

HDMI EXTENDER 500FT BY Cat5E/6/7

Do some checks before installation:

1. Set the output resolution of your signal source not higher than TV, and set the max resolution not higher than 1920*1080P@60Hz.

2. Connect your devices directly and check if they have image output (without HDMI extender).

3. If setting up multiple videos, it requires a Gigabit switch, which distributes the videos via MAC.

Specifications

1.Video

* HDMI 1.3 cable (HDMI-A), recommended within 15 feet

* Support input & output max resolution 1920X1080@60Hz, 3D

* Support max pixel clock 165MHz

* Support max data transfer rate 6.75Gbps

2.Ethernet

* Support Ethernet interface RJ45

* Support Ethernet crimping method 5680B (white orange, orange, white green, blue, white blue, green, white brown, brown)

* Support Ethernet cable length Cat5e/6/7—500ft, Cat5—400ft

* Support multiple videos through Gigabit switch.

3.Others

* Max working voltage: 2A/5VDC

* Operating Temperature range: (-5 to +70℃)

* Dimension (L x W x H): 81*43*23 (mm); Weight: 250g

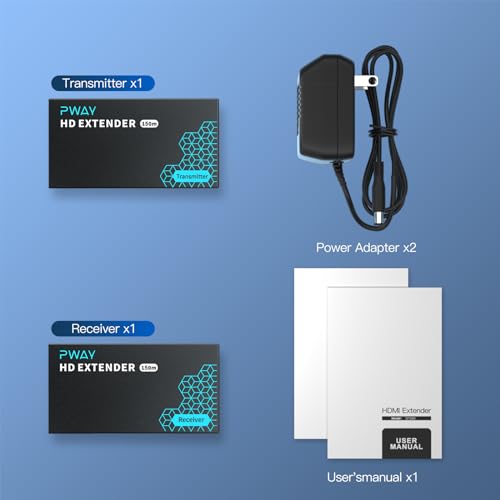

Package Lists

1x Transmitter

1x Receiver

2x Power adapter

1x User manual

Extend your HDMI Audio Video Signals. Consider that different types of Ethernet cables have signal attenuation, we recommend Cat5e/6/7 within 500 ft and Cat5 within 400 ft
Supports the max resolution of 1920*1080p@60hz, providing you with an ultra-high-definition video vision. It is also backward compatible with 1080p30, 1080i, 720p60, 720p30, and meet your diverse settings.

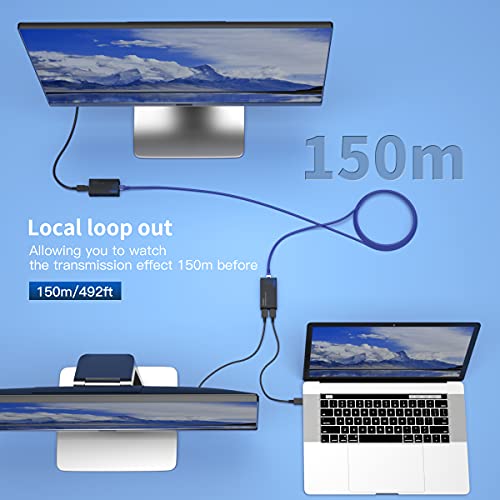

HDMI local output (loopout). This can connect a monitor to the TX and meet your needs for additional expanded screen.

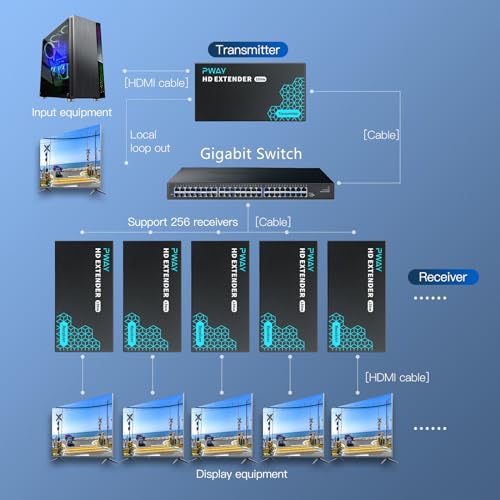

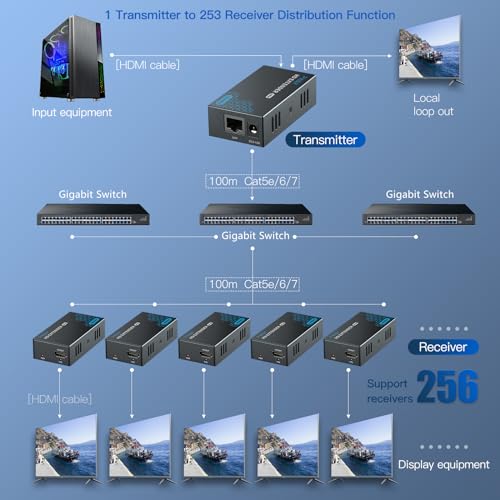

Support for multiple videos. Connect to your independent Gigabit Ethernet Switch and split to multiple TVs. Note: It is distributed via MAC and does not support 100 Mbit switches, Not recommended for use with your existing home switch
Simple installation, no software required. Metal shell, more durable
