ASRock B850M-X WiFi R2.0 AM5 Micro-ATX Motherboard: Supports AMD Ryzen 9000/8000/7000 CPUs, DDR5 8200+ (OC), PCIe 5.0, Wi-Fi 6E, 2.5G LAN, USB-C, BIOS Flashback

Description

AMD Ryzen 9000/8000/7000 Series High Performance Micro ATX Motherboard Equipped with DDR5, PCIe 5.0 and Wi-Fi 6E, it offers ample scalability and connectivity for gaming and creative work.

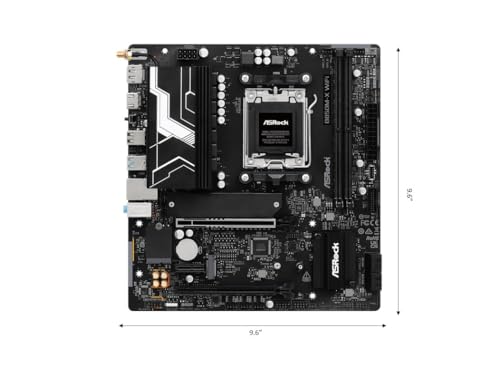

Form factor: Micro ATX (9.6 x 8.9 inches (244 x 226 mm)
Chipset: AMD B850.
CPU socket / compatible CPU: AMD socket AM5, Ryzen 9000/8000/7000 series.
Power phase: 6 + 1 + 1 phase Dr. MOS.
Memory socket: 2 x DDR5 UDIMM up to 128 GB
Supported memory: DDR5 ECC/Non-ECC, XMP/EXPO compatible
Expansion slots: 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4 operation), 1 x PCIe 4.0 x1
Memory: 1x M.2 (PCIe 5.0×4), 1x M.2 (PCIe 4.0×4), 4x SATA3.
Video output: 1x HDMI 2.1, 1x DisplayPort 1.4.
USB (rear): 1 x USB 5Gbps Type-C, 3 x USB 5Gbps, 2 x USB 2.0.
USB (front): 1x USB 5Gbps Type-C, 2x USB 5Gbps, 4x USB 2.0.
Sound: Realtek ALC897 + Nahimic Audio
Network: wired LAN 2.5GbE, Wi-Fi 6E + Bluetooth 5.2
Supported operating systems: Windows 10/11 64-bit
Accessories: 2 x SATA cables, 2 x WiFi antenna, I/O shield

***Not compatible with all built-in computers or systems
Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors

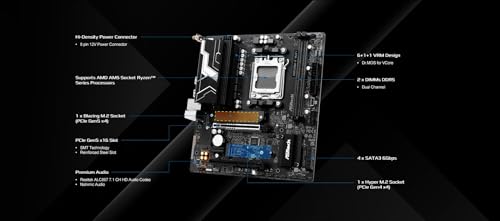

6+1+1 Phase Power Design, Dr.MOS for VCore
2 x DDR5 DIMMs Supports Dual Channel, up to 8200+ (OC)
Graphics Output Options: 1 HDMI, 1 DisplayPort Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 4.0 x1 1 Blazing M.2 (PCIe Gen5x4) 1 Hyper M.2 (PCIe Gen4x4) 4 SATA3
2 USB 3.2 Gen1 Type-C (1 Rear, 1 Front) 5 USB 3.2 Gen1 (3 Rear, 2 Front) 6 USB 2.0 (2 Rear, 4 Front)
Realtek 2.5G LAN 802.11axe Wi-Fi 6E + Bluetooth
Supports BIOS Flashback
